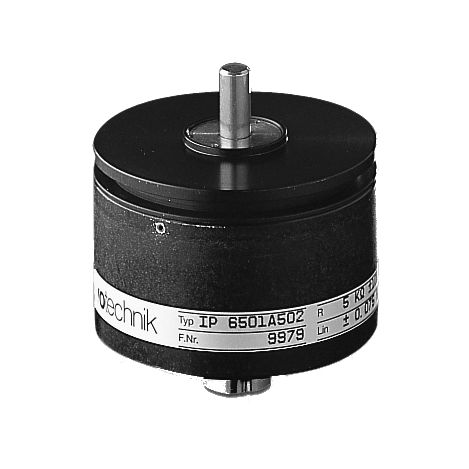

Rotary position sensor IP-6000

conductive plastic potentiometermetalIP65

Absolute high-precision potentiometric rotary sensor. Robust and sealed design High-precision potentiometric rotary sensor. Robust and sealed design • excellent linearity -standard ± 0.075%, onrequest ± 0.025% • long life -100 x 106 movements typ. • very good repeatability0.007° • mechanical continuous rotation • protection class IP 65 This „industrial-grade“ potentiometer has been speciallydesigned for the severe working conditions often encountered in industrial applications.The housing is waterprotectedand of sturdy construction.The shaft passage is sealedby a means of a shaft feedthrough and the connectorcomes up to the degree ofprotection IP 65 with the conformable plug. Because of itsreliability, long life, good linearity, high resolution, high operational speed and corrosionresistance, this componentopens applications hithertoclosed to conventional potentiometers. If the operating voltage is applied via connection 5, a protective resistance prevents ashort circuit between thewiper and the supply voltage,as it may happen duringwiring.Special versions with differentelectrical angles and shaftdimensions are available
