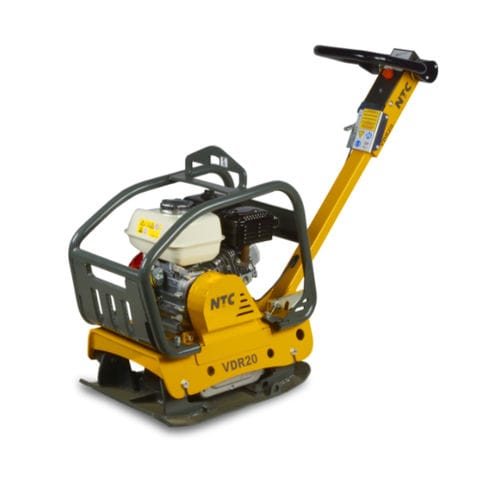

RANGE series plates are the next step in the development of the manipulation possibilities of vibratory plates.
Due to their weight and performance characteristics, light reversible plates are an alternative to forward vibratory plates with better optimization of handling properties, mainly due to the possibility of revers. In addition it provide trouble-free work in confined spaces where it is very difficult or impossible to handle with forward vibratory plates.
Operational parameters
Plate width
450
mm
Centrifugal force
26
kN
Frequency
95
Hz
Max. speed
22
m/min
Electric start
No
Engine
Maker and type
Honda
GX 200
Fuel
Petrol
Net power
4,1
kW
Emission stage
EU Stage V
Operational fluids
Water tank capacity
10
l
Working dimensions
Lenght
1220
mm
Width
450
mm
Height
1000
mm
Transport dimensions
Lenght
715
mm
Width
450
mm
Height
1100
mm
