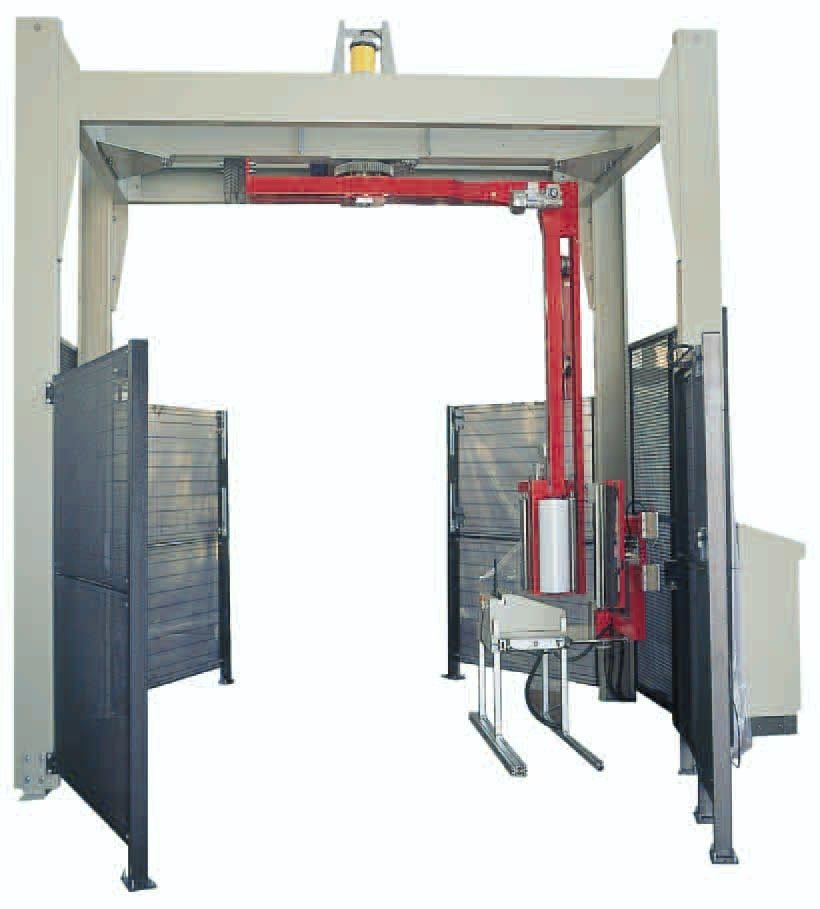

Automatic rotary arm stretch wrapper
max. 50 p/h | AV620
Officina Meccanica Sestese
FEATURES
* Average production: 50 pallets/hr
* Stretching film coil: ? 300 mm, H 500 mm, core 76 mm;
* Max film thickness: 23 micron
* Power supply: 240/400 V trifase 50 Hz
* Electric power installed: kW 3,5
* Pneumatic supply: 6/7 bar
* Air consumption per cycle: 30 Nl
DESCRIPTION
The AV620 models satisfies the requirements of companies with a high production rate. Thanks to its winding system with an arm that revolves around the standing pallet it is possible to process very unstable or very light loads. The variable speed of the arm's rotation as well as of the coil holder group upward and downward movement allows to overlap the film twists as needed.
