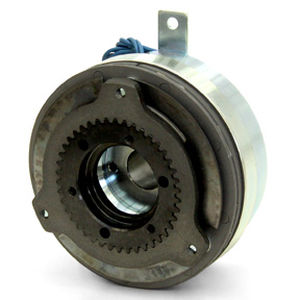

Disc clutch MSC-T series
electromagnetic

disc clutch
disc clutch
Add to favorites
Compare this product


Characteristics

Type
disc
Operation
electromagnetic
Torque

Min.: 9 ft.lb

Max.: 738 ft.lb

Rotational speed

Min.: 1,800 rpm
(11,309.73 rad.min-1)

Max.: 5,500 rpm
(34,557.52 rad.min-1)

Power

Min.: 15 W

Max.: 100 W

Description

Clutch designed for general industrial use. Suitable for high speed and high cycle applications. Clutch has automatic wear adjustment mechanism which maintains proper airgap over life of the clutch to maintain a consistent engagement time. AUTOMATIC AIRGAP ADJUSTMENT As the armature and rotor wear, the airgap is automatically reset to maintain proper position, greatly extending overall life and helping to maintain time to speed requirements. EASY MOUNTING One piece bearing mounted field suitable for vertical and horizontal mounting HIGH HEAT DISSIPATION CAPACITY Suitable for high speed cycle. FAST RESPONSE Quick engagement and disengagement
