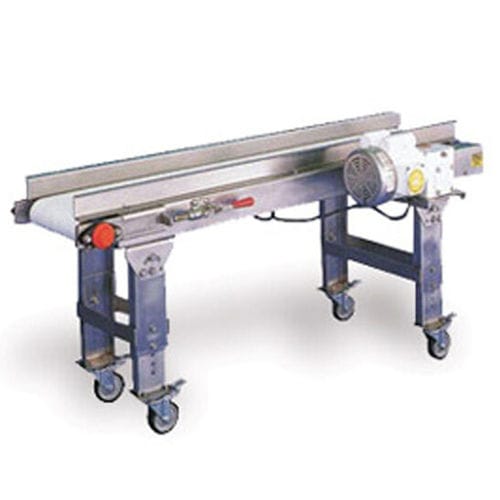

M-400 Series: Inclined Belt Conveyors, Stainless Steel. M-500 Series: Horizontal Belt Conveyors, Stainless Steel.
Standard features include 12 gauge steel frames, fixed 4" high steel slide rails, 3" diameter pulleys with 1" shafts, USDA/FDA approved belts, 1" bore flange heavy duty washdown bearings, 4" wide stainless steel adjustable legs with floor mount pads, washdown AC 56-C Face motor gearbox, 1/4 HP and up, single or three phase, manual motor starter control with plug overload protection and fixed speed.
TECHNICAL SPECIFICATIONS:
Belt height: - 24 in. (min)
42 ft. (max)
Belt width: - 6 in. (min)
36 in. (max)
Length: - 3 ft. (min)
60ft. (max)
Overall width: - 7 in. more than belt.
