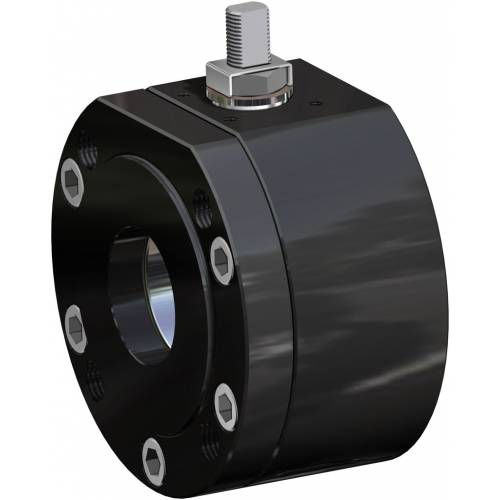

Floating ball valve Magnum

leverpetroleumwafer

STANDARD FEATURES • No protuding floating ball, full bore • Soft-seat seal TFM 1600 • Standard for connecting flanges: EN 1092-1; ASME B16.5 • Operating temperature see temperature pressure diagram • Tightness Class: EN12266-1 rate A • Intercepted fluid: air, water, gas, petroleum and petrochemical products. • Antistatic device EN12266-2 • Stem seal: TFM 1600 V-pack • Additional seal on stem with FKM O-ring • Anti Blow-out stem • Actuator connection as per standard ISO 5211 • Closing angle >7° • Superficial treatment: blueing FEATURES ON REQUEST • For other flange types please contact our sales department. • Sealing in: PTFE reinforced with glass (RPTFE-GF), PTFE reinforced with carbongraphite (RPTFE-CF) . For other types of materials please contact our sales department • Mono-directional version with pressure-relief hole in the ball • Stainless steel lever • For versions in materials different from the standard (body, ball, stem), please contact our sales department. • Stainless steel Stem nuts and springs • Superficial treatment: white zinc coating ,epoxy coating • For other coating please contact our sales department • ATEX marking and certificate ON REQUEST CERTIFICATIONS • In compliance with European Directive 2014/68/EU PED; Fugitive Emission ISO 15848 (ISO FE BH-C03-SSA 0); TA-LUFT VDI 2440; FIRE SAFE: ISO 10497 / API 607 • Safety integrity level up to SIL3 according to the IEC 61508
