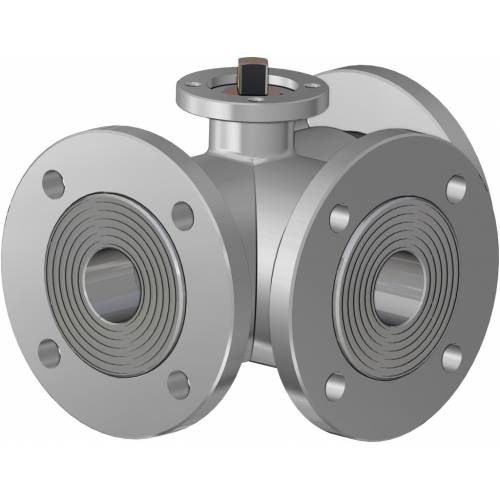

Ball valve ITEM 46 series
leverfor waterfor liquid food products and beverages

ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product

Go to the OMAL Spa website for more information

Characteristics

Type
ball
Operation
lever
Media
for water, for liquid food products and beverages, for air
Body
flange, stainless steel, graphite
Applications
for the food industry, for industrial applications, for the chemical industry, for oil industry applications, for the mining industry, for the pharmaceutical industry, for the gas industry, power line, for water treatment, for marine applications, for shipbuilding, for the paper industry, turbine, for machine tools
Number of channels
3-way
Other characteristics
ISO, ATEX
DN

Max.: 100 mm
(3.937 in)

Min.: 10 mm
(0.394 in)

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 16 bar
(232.1 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -20 °C
(-4 °F)

Description

• The valve is manufactured in 316L stainless steel. • Flanges as per EN 1092-1 • Valve with 4 ball seats. Inlet from any of the 3 ends. see plan. • Working pressure: see table. • Fluid range: air, water, food industry. • Surface treatment: polished. • Head of the valve as per ISO 5211 specifications. • The manual version (with lever) doesn't have the ISO 5211 top work and its therefore not possible to mount on it any kind of actuators ON REQUEST: • Flanges: Zinc-plated - ASME B16.5 Classe 150,300. • Seals made of: PTFE glass filled, PTFE with carbon graphite, High-molecular weight polyethylene. • For other applications, please contact our technical department. CERTIFICATIONS: • ATEX version in conformity with European Directive 2014/34/EU. • ATEX certificate on request.
