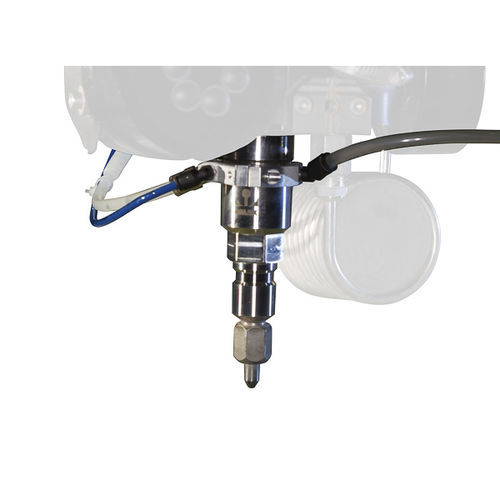

Cutting nozzle

for watercarbidediamond

The OMAX Vacuum Assist is ideal for piercing brittle materials. The OMAX Vacuum Assist eliminates delay between water and garnet feed, allowing for consistent automatic piercing of composites, laminates, and other materials. • Available in a wide range of nozzle orifice sizes, from 0.007” to 0.016”, with mixing tubes from 0.015” to 0.048” • Low-pressure stationary piercing can help improve the circularity and edge quality of small holes • Precise on/off cycles to prevent excess garnet usage • Automatic dynamic pressure adjustments • Visible pressure gauge to verify correct pressure settings The OMAX Vacuum Assist accessory is the ideal abrasive waterjet solution for piercing brittle materials, advancedcomposites, challenging laminates, and more. While using lower pressure can generally pierce some brittle materials,the pressure of the jet can cause delamination if the abrasive feed is delayed even slightly. The OMAX Vacuum Assisteliminates that delay, allowing for consistent automatic piercing of composites, laminates, and other brittle materials.Designed to work on both cantilever and bridge machines in the OMAX and MAXIEM® product line, the OMAXVacuum Assist can increase production and reduce material waste for maximum part processing yields
