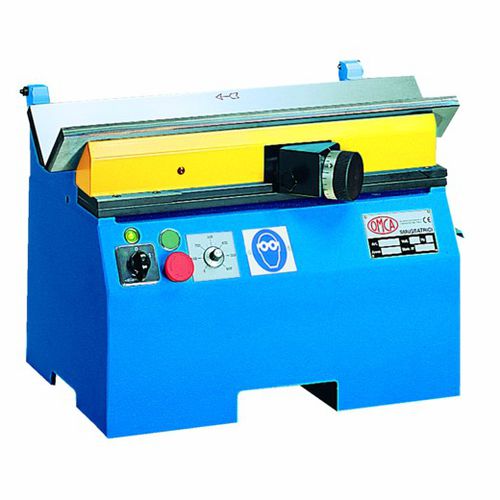

Sheet metal beveling machine ART. 8 series
electricbench-topprecision

sheet metal beveling machine
sheet metal beveling machine
sheet metal beveling machine
Add to favorites
Compare this product


Characteristics

Operation
electric
Applications
for sheet metal, bench-top
Other characteristics
precision
Power

750 W
(1.02 hp)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 10,000 rpm
(62,831.85 rad.min-1)

Chamfer angle

45 °

Description

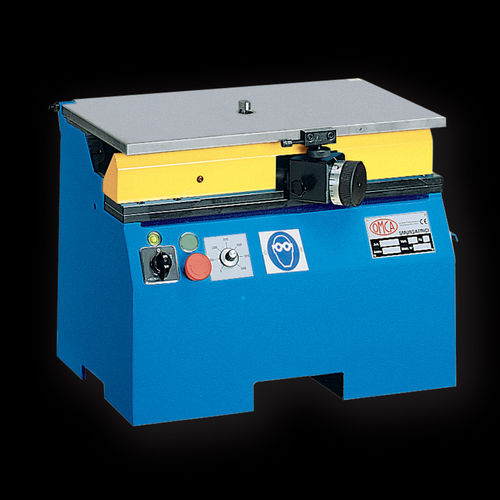

ART. 810 - Motor Power 230/400 VOLT. 3 PHASE 0,75 KW.(750W) 50/60 HZ - Bevel Length max 3 mm max 0.11in - Bevel Angle 45° - Cutter Ø 63 – Z7 + Ø 16 multisharpening Ø 2.48in – Z7 + Ø 0.629 multisharpening - Cutter Speed 0 – 6000 RPM - Dimensions and Weight 640x450x540 mm – KG. 75 25.19 x 17.7 x 21.25in – 165lbs ART. 850 - Motor Power 230/400 VOLT. 3 FASI-PHASE 0,75 KW.(750W) 50/60 HZ - Bevel Length max 10 mm max 0.39in - Bevel Angle 45° - Cutter Ø 63 mm – Z7 Ø 2.48in – Z7 - Cutter Speed 0 – 6000 RPM – (*)10000 RPM - Dimensions and weight 640x450x540 mm – KG. 57 25.1 x 17.7 x 21.25in – 125.4lbs
