Current testing device CMC 353
voltageelectricelectrical safety

current testing device
current testing device
current testing device
current testing device
current testing device
current testing device
current testing device
Add to favorites
Compare this product


Characteristics

Test type
current, voltage, electric, electrical safety, simulation
Operating mode
automatic, manual, PC-controllable, semi-automatic
Test material
circuit breaker, relay, for electric energy meters
Sector
for laboratories, industrial, for the petroleum industry, universal, for the automotive industry, for research and development, for quality control, for railway applications, for photovoltaic applications
Technology
digital, secondary injection, electric, electronic, universal
Configuration
portable, compact, benchtop
Other characteristics
precision, rugged, three-phase, DC, GOOSE, IEC61850, SV, IEEE1588, plug-and-play, remote-controlled, high-stability

Description

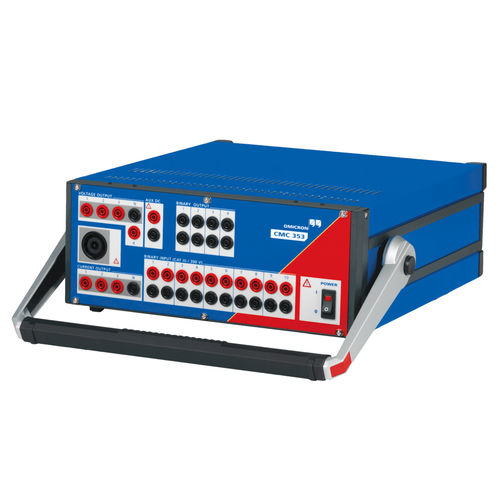

Compact and versatile three-phase relay test set With its compact design and low weight of 12.9 kg / 28.4 lbs, the CMC 353 provides the perfect combination of portability and power. It is the ideal test set for three-phase protection testing and the commissioning of SCADA systems. The powerful current outputs (3 x 32 A / 430 VA) optimally support 5 A relay testing. The portable design makes this test set an excellent choice for commissioning and maintenance tasks, particularly in industry, distributed generation, and medium and low voltage applications. The CMC 353 meets a wide variety of challenges in protection engineering - from testing electromechanical relays to the latest IEC 61850 IEDs. Key features - Compact design and light weight - High current amplitudes for 5 A relay testing - Powerful current sources for testing electromechanical relays - High accuracy and versatility for testing static and numerical relays - Integrated network for testing IEC 61850 IEDs
