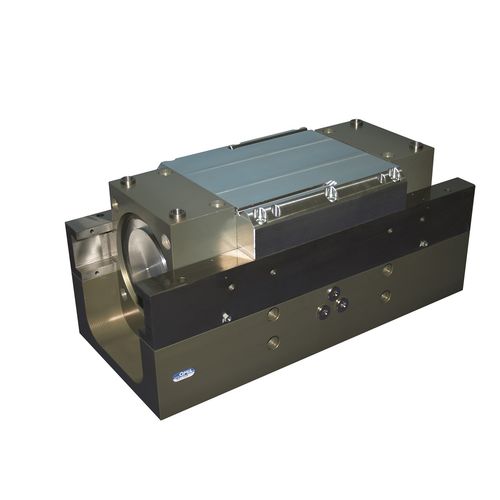

Pneumatic gripper PSG

concentric2-jawfor heavy loads

2-finger parallel gripper Max finger length 500mm Rating IP 30 Range of operating pressure: 2-8 bar - Repeatability accuracy: 0.1 mm over 100 cycles - Operating temperature: from -10°C to 90°C; version up to 130°C upon request - Operating principle: fingers sliding, guided by rack and pinion for concentric gripping - Housing material: high tensile hard-coated aluminium alloy, hardanodized - Material of functional parts: treated ground steel - Actuation : pneumatic, with filtered compressed air (10 µm): dry, lubricated or non-lubricated (DIN ISO 8573-1: 644) - Maintenance: no maintenance required for the first 1.5 million cycles - Suitable for internal/external gripping - Rating IP 30 - Warranty 24 months
