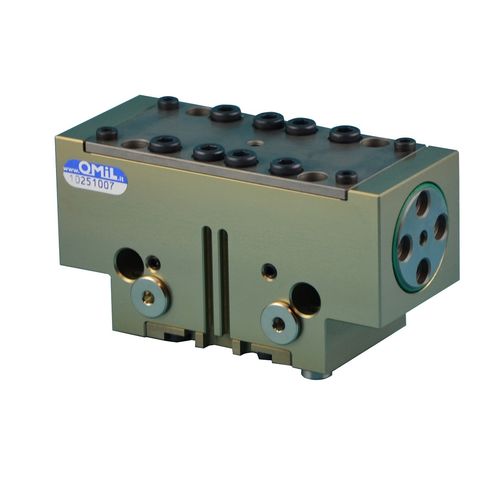

Pneumatic gripper / parallel / 2-jaw / for handling systems
GSO series OMIL

Characteristics

  • Operation:

    pneumatic

  • Type:

    parallel

  • Number of jaws:

    2-jaw

  • Application:

    for handling systems, for industrial robots, for heavy loads, for clean rooms, for large parts, for palletization robots, for collaborative robots

  • Options:

    internal, compact, self-centering, double-acting, precision, high clamping force, maintenance-free, external, IP 67, high-efficiency

  • Stroke :

    Min.: 5 mm

    Max.: 32 mm

  • Grip strength:

    Min.: 110 N

    Max.: 3040 N

Description

- operating pressure: 2,5...8 bar
- repeatability accuracuy: from 0.01mm over 100 cycles
- operating temperature: from -10°C to 90°C, 130°C upon request
- operating principle: wedge - hook kinematics
- stroke range: from 5 to 32 mm
- housing materilas: high tensile hard-coated aluminium alloy, hard-anodized
- material of functional parts: treated ground steel
- actution: filtered compressed air
- Rating IP 67
