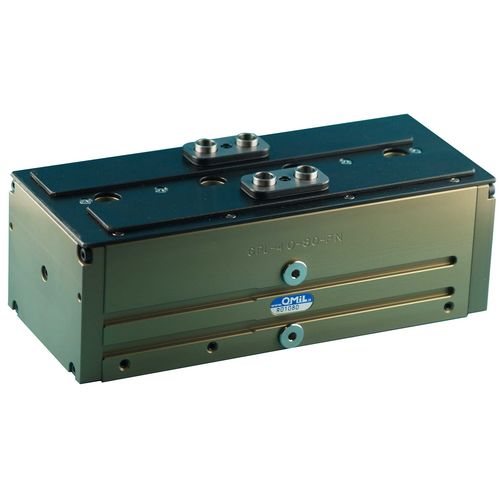

Pneumatic gripper / parallel / 2-jaw / for handling systems
PLG series OMIL

Characteristics

  • Operation:

    pneumatic

  • Type:

    parallel

  • Number of jaws:

    2-jaw

  • Application:

    for handling systems, for industrial robots, for large parts, for palletization robots

  • Options:

    long-stroke, double-acting

  • Stroke :

    Min.: 460 mm

    Max.: 2400 mm

  • Grip strength:

    Min.: 80 N

    Max.: 400 N

Description

- operating pressure: 2,5...8 bar
- repeatability accuracuy: from 0.05 absolute
- operating temperature: from -10°C to 90°C, 130°C upon request
- operating principle: finger sliding, guided by rack and pinion for concentric gripping
- stroke range: from 80 to 400 mm
- housing materilas: high tensile hard-coated aluminium alloy, hard-anodized
- material of functional parts: treated ground steel
- actution: filtered compressed air
- Rating IP 40 / IP 54
