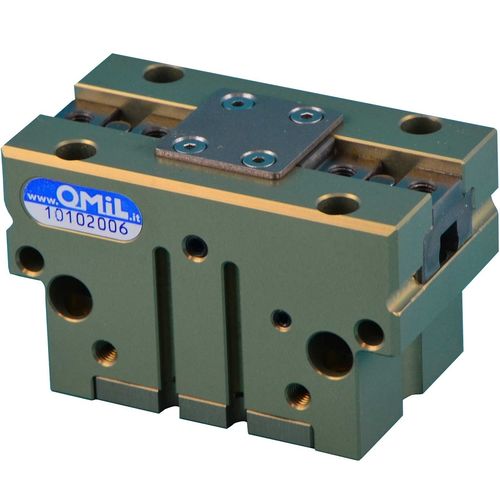

Pneumatic gripper / parallel / 2-jaw / compact
OPP2 series OMIL

Characteristics

  • Operation:

    pneumatic

  • Type:

    parallel

  • Number of jaws:

    2-jaw

  • Options:

    compact

  • Stroke :

    Min.: 6 mm

    Max.: 72 mm

  • Grip strength:

    Min.: 220 N

    Max.: 8410 N

Description

- operating pressure: 2...8 bar
- repeatability accuracuy: from 0.01-0,02 absolute
- operating temperature: from -10°C to 90°C, 130°C upon request
- operating principle: wedge - hook kinematics
- stroke range: from6 to 72 mm
- housing materilas: high tensile hard-coated aluminium alloy, hard-anodized
- material of functional parts: treated ground steel
- actution: filtered compressed air
- pressurization
- Rating IP 40
