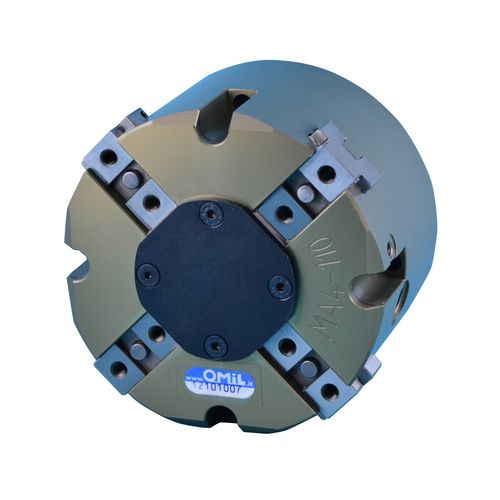

Pneumatic gripper MA4concentric4-jawself-centering
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- concentric
- Number of jaws
- 4-jaw
- Options
- self-centering, internal, external
- Grip strength
Max.: 25,380 N
Min.: 770 N
- Stroke
Max.: 50 mm
(1.969 in)Min.: 6 mm
(0.236 in)
Description
- Range of operating pressure : 2 - 8 bar
- Repeatability accuracy: MA4-75..110 0.02 mm; MA4-145..230 0.05 mm over 100 cycles;
- Operating temperature: from -10°C to 90°C; version up to 130°C upon request
- Operating principle: wedge-hook kinematics
- Housing material: high tensile hardcoated aluminium alloy, hard-anodized
- Material of functional parts: treated ground steel
- Actuation : compressed air filtered (10 µm), dry or lubricated
- Maintenance: no maintenance required for the first 1.5 million cycles
- Suitable for internal/external gripping
- Layout finger connection page 18
- Air connections: sides and base
- Rating IP 40
- Warranty 24 months
