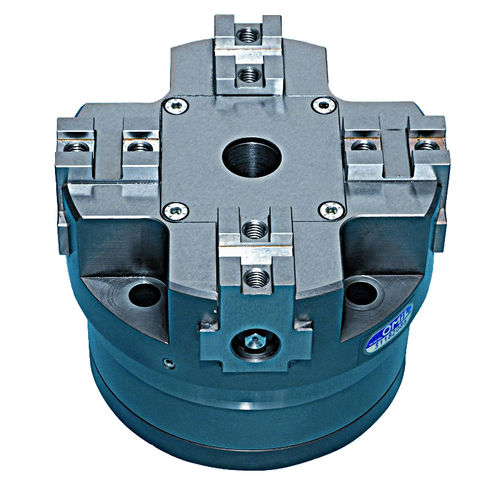

4-jaw turning chuck / lathe / through-hole / pneumatic
MPAF/4 series OMIL

{{requestButtons}}

Characteristics

  • Number of jaws:

    4-jaw

  • Other characteristics:

    lathe, through-hole, pneumatic, self-centering, hydraulic, stationary

  • Gripping force:

    Min.: 13,500 N

    Max.: 206,000 N

Description

Stationary 4-jaws-Clamping-Chuck, pneumatic-hydraulic

- operating pressure: 12 bar pneumatic / 50 bar hydraulic
- repeatability accuracuy: from 0.02-0.05 absolute
- operating temperature: from 5°C to 60°C
- operating principle: wedge - hook kinematics
- stroke range: from 5 to 44 mm
- material: treated ground steel
- actution: filtered compressed air pneumatic / filtered oil hydraulic
- pressurization
