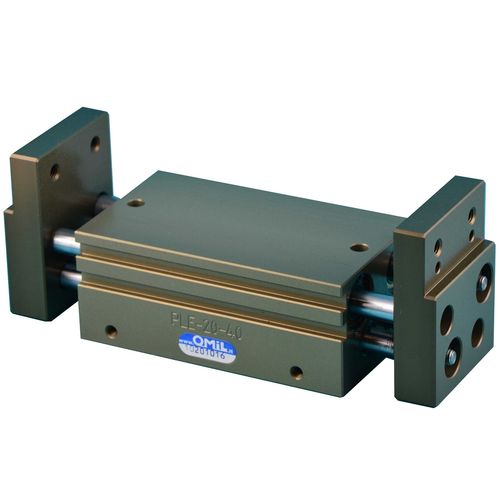

Pneumatic gripper / parallel / 2-jaw / long-stroke
PLE series OMIL

Characteristics

  • Operation:

    pneumatic

  • Type:

    parallel

  • Number of jaws:

    2-jaw

  • Options:

    long-stroke

  • Stroke :

    Min.: 30 mm

    Max.: 160 mm

  • Grip strength:

    Min.: 170 N

    Max.: 1100 N

Description

- operating pressure: 2...8 bar
- repeatability accuracuy: from 0.1 absolute
- operating temperature: from -10°C to 90°C, 130°C upon request
- operating principle: finger sliding, guided by rack and pinion for concentric gripping
- stroke range: from 30 to 160 mm
- housing materilas: high tensile hard-coated aluminium alloy, hard-anodized
- material of functional parts: treated ground steel
- actution: filtered compressed air
- Rating IP 54
