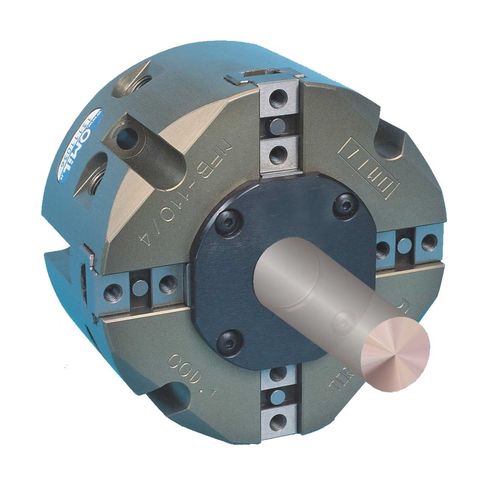

Pneumatic gripper MFB/4concentric4-jawfor handling systems
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- concentric
- Number of jaws
- 4-jaw
- Application
- for handling systems, for industrial robots
- Options
- self-centering, internal, external, through-hole
- Grip strength
1,200 N, 1,700 N, 2,900 N
- Stroke
12 mm, 16 mm, 20 mm
(0.472 in, 0.63 in, 0.787 in)
Description
- Range of operating pressure : 2 - 8 bar
- Repeatability accuracy: 0.02 mm; over 100 cycles;
- Operating temperature: from -10°C to 90°C; version up to 130°C upon request
- Operating principle: wedge-hook kinematics
- Housing material: high tensile hardcoated aluminium alloy, hard-anodized
- Material of functional parts: treated ground steel
- Actuation : compressed air filtered (10 µm), dry or lubricated
- Maintenance: no maintenance required for the first 1.5 million cycles
- Suitable for internal/external gripping
- Layout finger connection page 18
- Air connections: sides and base
- Rating IP 40
- Through central hole
- Warranty 24 months
