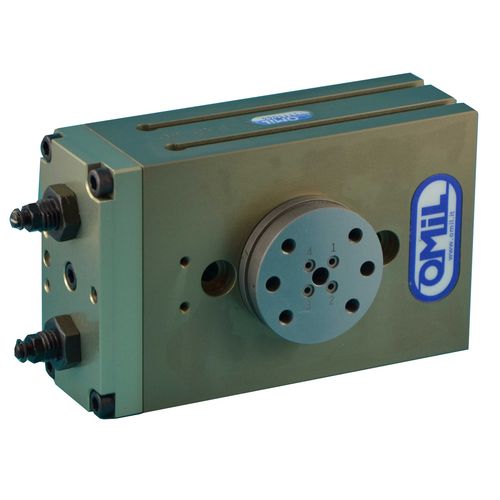

rotary actuator / pneumatic / 0-90° swivel angle
PAO series OMIL

{{requestButtons}}

Characteristics

  • Movement:

    rotary

  • Type:

    pneumatic

  • Other characteristics:

    0-90° swivel angle

  • Torque:

    Max.: 310 Nm (228.64 ft.lb)

    Min.: 6 Nm (4.43 ft.lb)

Description

- Range of operating pressure: 4...8 bar
- Repeatability accuracy: 0.07° assoluta
- Operating temperature from -10°C a 90°C
- Operating principle : 2 racks syncronised by pinion
- Damping : by shock absorbers
- Limit switch positions adjustment 2°
- Adjusting screws
- Stroke: 0°-180° ....0°-90°
- Housing material: high tensile hard-coated alluminium alloy, hard-anodized
- Material of functional parts :treated and ground steel
- Actution: filtered compressed air
- Rating IP 54
