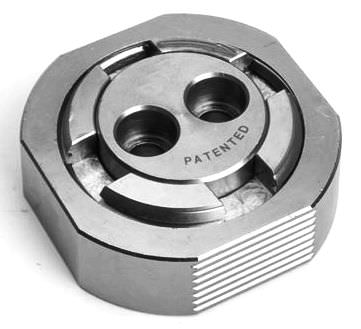

Eccentric clamping device
OML

The CAM SYSTEM has been developed and patented to easily clamp workpieces with varied forms. This compact product enables double locking (Axial and Radial) using the eccentric and propeller principle. With a rotation of approximately 15°, contact is made with the workpiece with the complete clamping face of the CAM. The CAM
SYSTEM clamps the workpiece with a clamping force of 4,000 kg (t) and 2,000 kg (s). CAM SYSTEM is supplied with both cap heads bolts and T-nuts to suit the particular machine tool cross slots. CAM SYSTEM g is supplied singly,
to the customer detailed grid specification.
