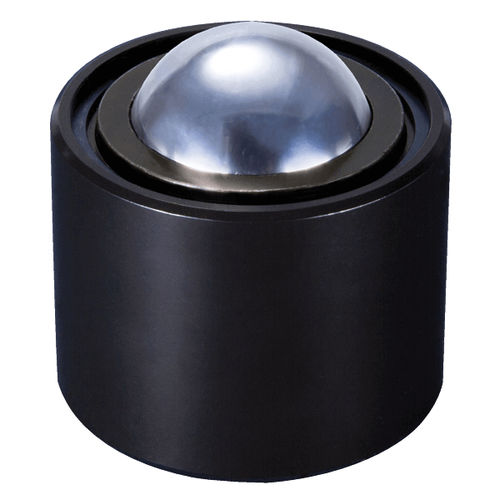

heavy load ball transfer unit / stainless steel / polymer / cylindrical base
90 series Omnitrack

{{requestButtons}}

Characteristics

  • Material:

    stainless steel, polymer

  • Type:

    cylindrical base

  • Capacity:

    for heavy loads

  • Carrying capacity:

    Min.: 46 kg (101.4 lb)

    Max.: 4,550 kg (10,031 lb)

Description

Load capacity from 46kg to 4550Kg each – any angle of operation
20mm – 160mm Ø press or push fit into machine bed
Tolerance rings can be used to compensate for irregularities in bore
Units with ball Ø> 12.7mm incorporate replaceable seals
Service kits available for extended service life
Load ratings remain unchanged with ‘Optional material upgrades’ (Stainless steel, A, Z) – see below
