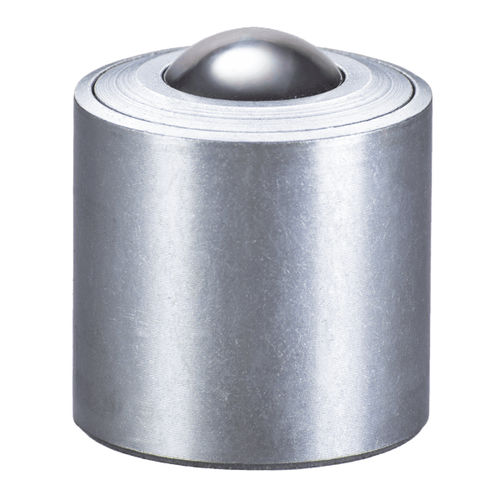

medium load ball transfer unit / stainless steel / POM / cylindrical base
MI series Omnitrack

{{requestButtons}}

Characteristics

  • Material:

    stainless steel, POM

  • Type:

    cylindrical base

  • Capacity:

    for medium loads

  • Carrying capacity:

    25 kg, 60 kg, 180 kg, 350 kg, 600 kg (55.1 lb)

Description

Medium Duty ball units are machined from solid steel & case hardened for wear resistance. Reinforced machined steel top cap protect against impact from misalignment of the conveyed item. Lubricated for life & zinc plated for resistance to corrosion. Standard materials; Body & cap AISI 1015, Balls AISI 52100. Stainless steel upgrade ‘A’ & ‘SS’ feature AISI420 balls Shock Resistance & body. Main ball sizes ≥19mm incorporate a felt seal to restrict contamination.

This series features a single drain hole.

M8 internal securing thread (female)
