parallel robot / 4-axis / 3-axis / packaging
Hornet series Omron Electronics GmbH

{{requestButtons}}

Characteristics

  • Type:

    parallel

  • Number of axes:

    4-axis, 3-axis

  • Function:

    packaging

  • Other characteristics:

    high-speed, high-precision

  • Field:

    industrial, for the pharmaceutical industry, fast, for the food and beverage industry, for the healthcare sector

  • Payload:

    1 kg (2.205 lb)

  • Reach:

    1,130 mm

  • Repeatability:

    0.1 mm

Description

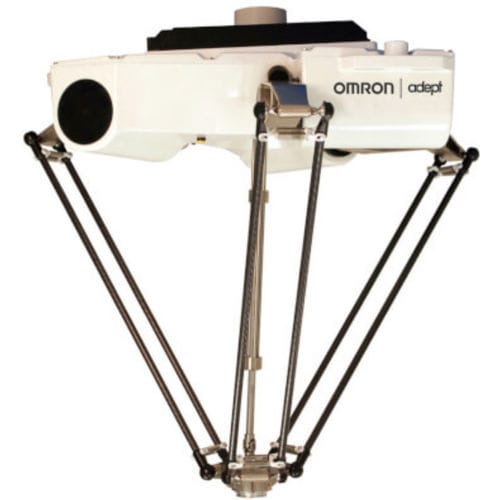

The Hornet 565 is a parallel robot for high-speed picking and packaging applications. Adept’s powerful controls are fully embedded into the base of the robot, saving valuable floor space and reducing installation costs and complexity. The Hornet 565 features a hygienic design that minimizes contamination risks, including a standard IP65 rating and corrosion resistant materials for easy wash down. The Hornet is part of Adept’s complete robotic packaging solution that includes integrated high-speed conveyor tracking, powerful vision guidance, and easy-to-use application software created specifically for the packaging market. The robot can also be programmed directly from a PLC, minimizing training and deployment time by using familiar ladder logic programming languages (IEC 61131-3).
