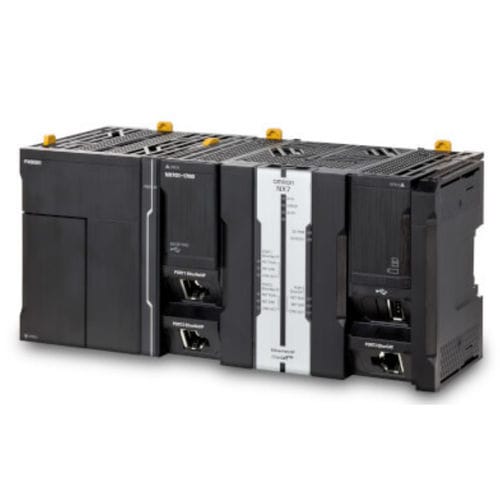

Multi-axis motion controller NX7 series
EthernetEtherCAThigh-performance

multi-axis motion controller
multi-axis motion controller
Add to favorites
Compare this product


Characteristics

Number of axes
multi-axis
Signal type
Ethernet, EtherCAT
Other characteristics
high-performance
Product applications
for automation, for machines, for server

Description

The NX7 series is a high performance CPU that includes two synchronized motion cores controlling up to 256 axes. -Fastest cycle time: 125 µs -Number of axes: 256, 128 -Two synchronized motion cores -Functions: Logic sequence, Database connection, AI and Motion -Database direct connection: SQL client for server Microsoft SQL, Oracle, IBM DB2, MySQL, Firebird, PostgreSQL -Database direct connection in V2.0 is expanded with stored procedure calls and secure communications functionality -AI Functionality: AI engine included in the controller enables real time utilisation of machine learning model -AI Predictive Maintenance Library enables non-stop equipment -Multi-tasking -Built-in EtherCAT and two EtherNet/IP (1 Gbps) ports -IoT Ready: OPC UA server built-in as standard feature, variable structures are supported
