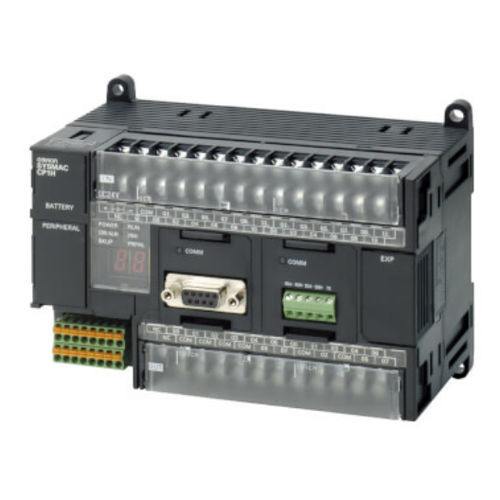

Compact PLC CP1H series

micro4-I2-O

Designed for compact machines, it combines the size of a micro PLC and the power of a modular PLC. Four built-in high-speed counters and four pulse outputs are ideal for multi-axis positioning control. The CP1H-XA comes with 4 analog inputs and 2 analog outputs built-in. This makes it suitable for simple loop control, using the PLC's advanced PID control function with auto-tuning. The CP1H can be expanded with CP1W I/Os and supports up to 2 CJ1 special I/O units. This means that it is open to popular fieldbuses and supports all communication units of the CJ1 series. -Up to 1 MHz for inputs/outputs -CJ1M compatible instruction set and execution speed -4 analog inputs and 2 analog outputs for the XA model -USB port for easy communication, programming and configuration -Supports PROFIBUS, DeviceNet, CAN and Ethernet
