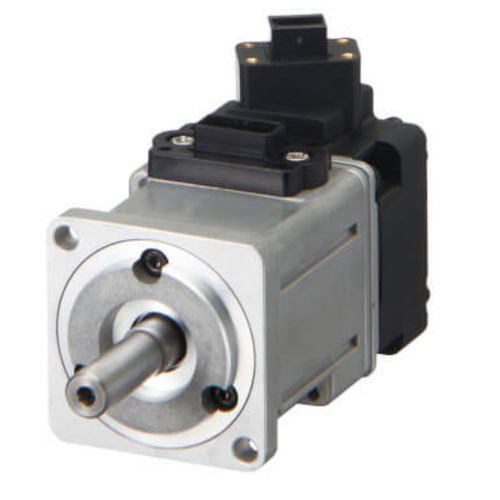

AC servomotor Accurax G5
asynchronous400 V230 V

AC servomotor
AC servomotor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
400 V, 230 V
Protection class
IP67, robust
Configuration
with coder, compact
Number of poles
10-pole
Other characteristics
low-speed
Power

Max.: 15,000 W
(20.394 hp)

Min.: 50 W
(0.068 hp)

Torque

Max.: 95.5 Nm
(70.4372 ft.lb)

Min.: 0.16 Nm
(0.118 ft.lb)

Rotational speed

1,000 rpm, 1,500 rpm, 2,000 rpm, 3,000 rpm
(6,283.19 rad.min-1, 9,424.78 rad.min-1, 12,566.37 rad.min-1, 18,849.56 rad.min-1)

Description

Accurax G5 servomotors include IP67 protection and connectors on the motor body. Use of 10 pole motors and 20 bit encoder results in 40% reduction in motor cogging. The servomotors are 25% lighter and 15% smaller due to patented new stator design PAC-Clamp, 40% iron loss reduction and 15% smaller encoder. Sizes from 50W to 15 kW, rated speeds of 1000 rpm, 1500 rpm, 2000 rpm and 3000 rpm Peak torque 300% of continuous torque during 3 seconds or more depending on model High accuracy provided by a 20 bit resolution encoder, ABS encoder as an option IP67 protection in all motor models Low speed ripple and low torque ripple due to low torque cogging Compact design and robust construction including smart connectors No motor settings required, just plug and run
