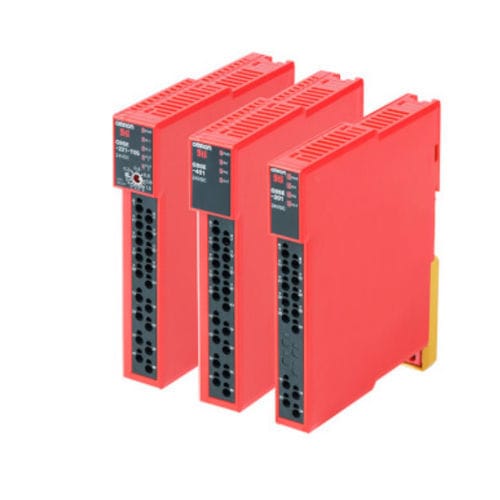

Safety relay module G9SE series

compact

G9SE-family offers compact units for E-Stop, door and safety monitoring applications . Modules with two or four safety contacts and OFF-delay timing are available on slim-size housing. Simple front side wiring using screw-less terminals. 17.5 or 22.5 mm width to save mounting space 15ms Max. response time Safe OFF delay function up to PLe Certification for lift standards EN 81-1, EN 81-2 Up to Ple according to EN ISO 13849-1 and SIL 3 according to EN 61508
