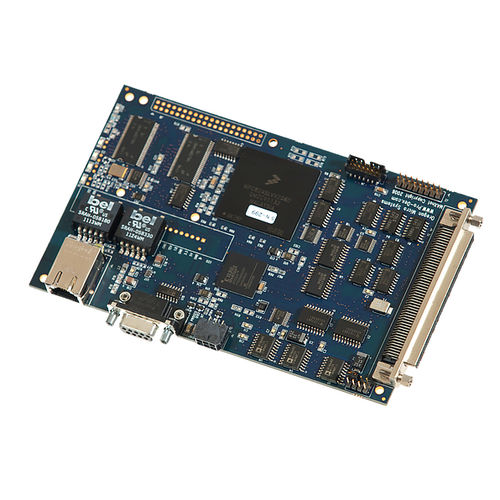

1-to-10-axis motion controller MAXnet family

servomotorstepperdigital

The MAXnet is a 1- to 10-axis motion controller for automated equipment, robotics, and applications requiring accuracy, precision, and flexibility. The Ethernet interface utilizes standard TCP/IP protocol for compatibility and can virtually be controlled and/or monitored from almost anywhere. A high-speed RS232 serial interface is included at baud rates of 9600 to 115.2k. In addition to the limits, home and motion control signals, the MAXnet includes 8 bi-directional I/O, 5-outputs, 2-analog inputs and 1-analog output (the 5 axis). OMS motion controllers have a 40+ year reputation of reliability and performance and the MAXnet is no exception. On-board Flash memory can store macro programs for stand-alone applications. The MAXnet firmware can be upgraded through the Ethernet or serial interfaces allowing the controller to be embedded in systems without the need for removal. The IODnet interconnect module stacks on the MAXnet for a compact system with convenient screw terminal connection. A key feature of the MAXnet is the expansion interface for daughter boards that provide unmatched flexibility and help minimize the need for third party controls. The base MAXnet is a 5-axis controller and through a daughter board 10-axis can be achieved. The ability to produce custom daughter boards on the MAXnet provides endless opportunities combining unique functions and the motion control for optimum system performance.
