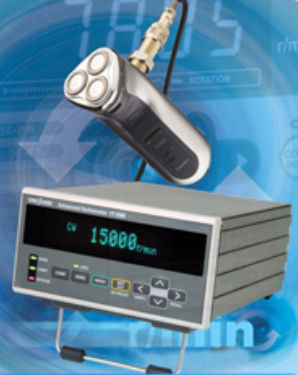

Non-contact tachometer FT-2500
benchtopdigitalFFT

non-contact tachometer
non-contact tachometer
Add to favorites
Compare this product


Characteristics

Type
non-contact
Mounting
benchtop
Display
digital
Other characteristics
FFT
Rotational speed

Min.: 225 rpm
(1,413.72 rad.min-1)

Max.: 600,000 rpm
(3,769,911.18 rad.min-1)

Description

The FT-2500 is an advanced tachometer which measures the rotational speed by the FFT calculation. The rotational speed is calculated from the frequency signal of light, magnetism, vibration or sound. * Does not require the application of reflective markers. * Allows easy evaluation of RPM even when rotating shafts are not directly accessible. * Added versatility when combined with a range of detectors, including: leakage flux detectors, optical fiber sensors, accelerometers and sound level meters. * Two stage upper/lower limit comparator output or RS-232C interface, ideal for GO/NO GO determinations. * Analog and Pulse outputs. Features • It does not require the reflective marks or special machining to attach the sensor. • Because the rotational speed measurement can be performed easily from the frequency signal of sound or vibration, no special machining to rotating shaft is required. • The measurement under the condition of the change or acceleration/deceleration in the rotational speed is available. (When the acceleration/deceleration rotation measurement mode is selected.) • Provided with rotating direction acknowledgment function (When FT-0501 magnetic flux leakage sensor is used.) • Easy reading thanks to the fluorescent display • Provided both the analog and pulse outputs • Ethernet communication function can be added as an option.
