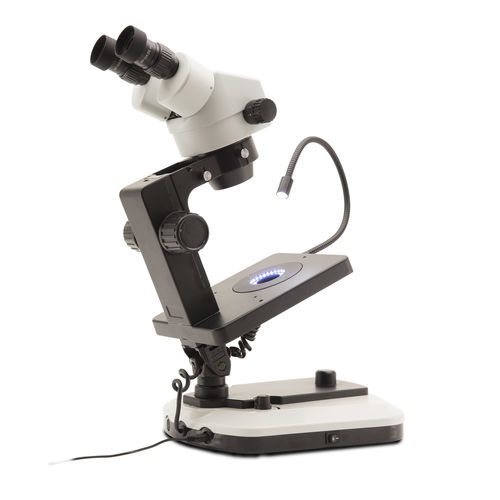

Optical stereo microscope OPTIGEM-10

inspectiongemologicalbinocular

Binocular gemological stereomicroscopes for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield illumination. Equipped also with 4 incident LED flexible arm and a diffusive LED disc for transmitted illumination. The instrument can be easily tilted horizontally for immersion analysis. • Observation mode: Brightfield, darkfield. • Heads: Binocular, 45° inclined, 360° rotating. • Interpupillary distance: Adjustable between 51 and 75 mm. • Dioptric adjustment: On both eyepiece tubes. • Eyepieces: WF10x/21 mm, high eye-point. • Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1). • Working distance: 100 mm. • Specimen stage: Gemological stage, with clamp for holding gems. • Focusing: Rack and pinion mechanism controlled by a pair of knobs. • Stand: Fixed arm stand with tilting system (with position lock control). It can be totally overturned and rotated allowing in this way to obtain a 2-in-one instrument: an instrument for standard observations and one for observation of water-immersed gems. • Darkfield illumination: Equipped with a state-of-the-art illuminator for darkfield observation. It consist of an innovative side-emmiting LEDs ring with an emission angle of 38°. With brightness control. • Transmitted light llumination: Equipped with a LED illuminator, located under the stage. With brightness control. • Incident illumination: Equipped with a flexible gooseneck-arm 4LED illuminator. With brightness control. • Color temperature: Pure white 6,300 K
