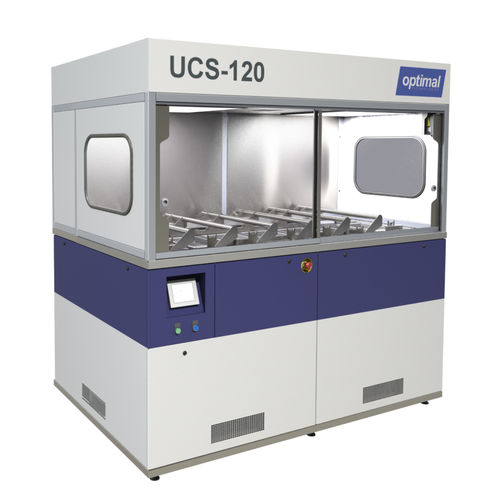

Ultrasonic cleaning machine UCS120 (Special)immersionautomaticmedical
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic, immersion
- Operational mode
- automatic
- Applications
- medical, optical, for ophthalmic lenses
- Other characteristics
- compact, with basket, with belt conveyor, multiple-stage
- Capacity
14 l
(3.7 gal)
Description
Ultrasonic Cleaning System
Compact design footprint
Quick set-up and installation
Multi-process memory
Automatic stage fill values
Filtration to all stages
Internal ‘closed loop’ water purification system
Oscillation of substrate during cleaning
Class 100 enclosure
Fume extraction
Technical Specification:
Electrical supply: 220 – 240V 1 – phase + neutral (32A)
Water supply: ½” BSP town mains water
Drain: 2 x ¾” clean and chemical
Air: 0.25 litres/minute at 4 bar
Cleaning tank dimensions: 170mm x 300mm x 200 (deep)
Overall Dimensions: 2000mm x 750mm x 1050mm (high)
Cleaning tanks capacity: 14 litres (includes buffer overflow)
Substrates per batch: 10 (diameter to 120mm)
Batches per hour: 12 (typically) – 144 substrates
