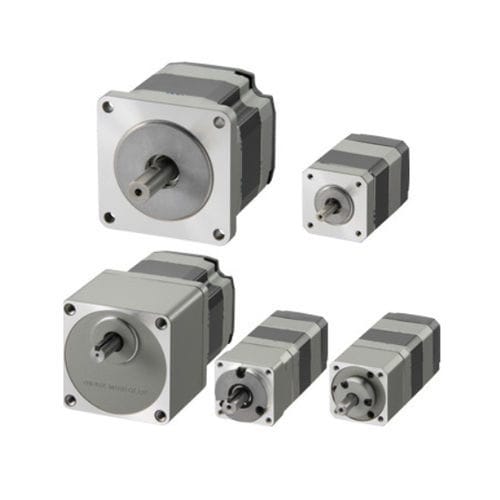

DC motor AR series
stepper220 V110 V

DC motor
DC motor
DC motor
DC motor
DC motor
DC motor
DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
stepper
Voltage
220 V, 110 V, 100 V
Configuration
with built-in electromagnetic brake, NEMA 17, NEMA 34, NEMA 24
Other characteristics
high-efficiency, closed-loop
Torque

Min.: 0.055 Nm
(0.0406 ft.lb)

Max.: 50 Nm
(36.8781 ft.lb)

Description

The AlphaStep AR Series stepper motors offer high efficiency, low vibration, continuous operation with the security of closed loop performance without hunting or gain tuning. Available with a built-in controller or pulse input driver, the system substantially reduces heat generation from the stepper motor through the use of high-efficiency technology. The AlphaStep AR Series also achieves up to 40% less power consumption, improved angle accuracy and is capable of driving large inertia loads. For use with AlphaStep AR Series Drivers. • AC or DC Input Types • Parallel Shaft and Right Angle Geared Types for Higher Torque, Space Savings • AlphaStep AR Series Stepper Motor Driver Required* The AlphaStep AR Series uses Oriental Motor's closed loop control to maintain positioning operation even during abrupt load fluctuations and accelerations. The rotor position detection sensor monitors the rotation. When an overload condition is detected, the AlphaStep AR Series will instantaneously regain control using the closed loop mode. When an overload condition continues, the AlphaStep AR Series will output an alarm signal, thereby providing reliability equal to that of a servo motor.
