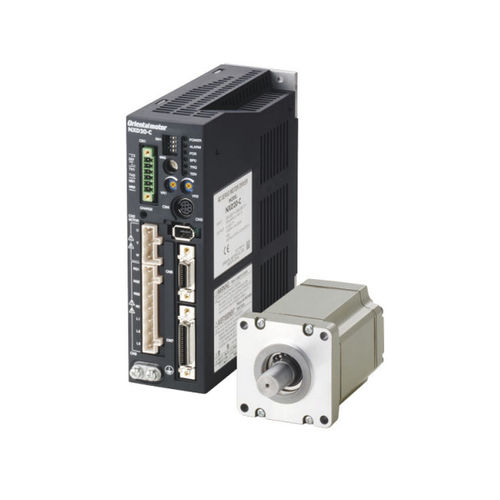

AC servomotor / brushless / 200V / 230V
NX series Oriental Motor

Characteristics

  • AC/DC:

    AC

  • Type:

    brushless

  • Voltage :

    200V, 230V, 115V, 100V

  • Torque:

    Min.: 0.159 Nm (0.12 ft.lb)

    Max.: 27.7 Nm (20.43 ft.lb)

  • Power:

    Min.: 50 W (0.07 hp)

    Max.: 750 W (1.01 hp)

  • Rotational speed:

    Max.: 5000 rpm (31415.93 rad.min-1)

    3000 rpm (18849.56 rad.min-1)

Description

NX Series

Servo motor driver package

Frame size: 42, 60, 85, 90 mm

Output power: 50-750 W

Rated torque: 0.159 Nm - 25.7 Nm

Rated speed: 3000 r/min

Maximum speed: 5000 r/min

Resolution: 100-100000 P/R

Power Supply Input: 1-Phase 200-230 VAC, 3-Phase 200-230 VAC

Available types: standard, with planetary gearhead, with electromagnetic brake

Advantages:
- Easy handling
- Auto-tuning function
- IP65
