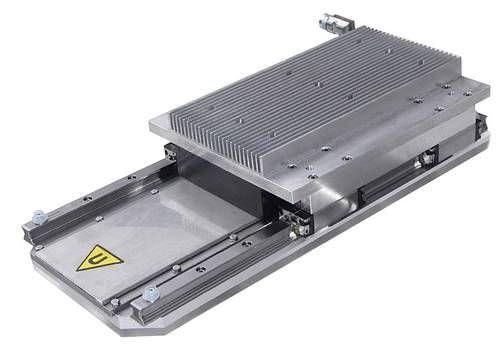

Linear electric motor (ironcore, synchronous, brushless)
100 - 10 000 N, max. 10 m/s | LIFS series
Oswald Elektromotoren
Flat linear motors
Features specific for this product line
> direct electric drive
> high speed
> without reduction gear, no play at direction reversal
> no rotor losses
> with NdFeB magnets
Features of Oswald motors
>compact, robust, high force density
>maintenance-free or low maintenance
>low inertia, dynamical
>long life
>Made in Germany
Technical spezification
force at continuous duty 100 - 10.000 N
speed up to 10 m/s
stroke modular, arbitrary
cooling air or fluid
protection class IP54 (primary, secondary windings)
We will be happy to adapt the electrical and mechanical design to your specific requirements.
