DIP switch B1-5 series
single-poleprecisionelectromechanical

DIP switch
DIP switch
DIP switch
DIP switch
Add to favorites
Compare this product


Characteristics

Type
DIP
Number of poles
single-pole
Other characteristics
precision, electromechanical, snap-action, subminiature, actuator
Primary current

10 mA

Voltage

28 mV

Operating temperature

Max.: 125 °C
(257 °F)

Min.: -55 °C
(-67 °F)

Description

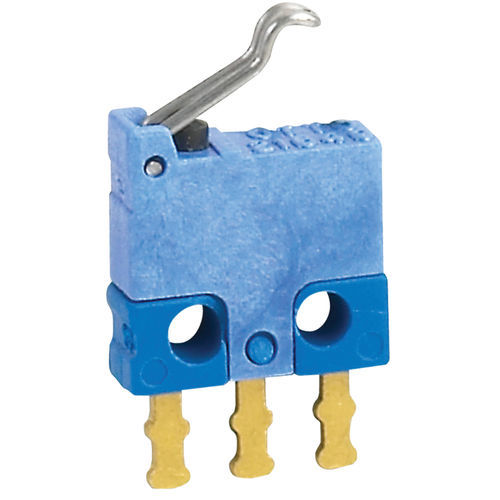

B1-5 series basic switches feature integral actuating levers. The lever is built-in so that the switch and actuator are one assembly. Making the lever actuator an integral part of the basic switch case makes sense and saves money, too. Better precision, no parts to assemble and more variety add up to a cost saving proposition. • Ultra-compact: only 0.300” w x 0.255” h x 0.100” thick • 1 million cycle life, B1-5 Series • Logic level switching capability • Designed to meet requirements of MIL-PRF-8805/94 • Available in Commercial & Military grades • Choice of solder or PC molded-in terminals • Precision operating points • Momentary action • RoHS compliant
