Linear guide rail
25 - 700 mm | S 25 LL series
OWIS

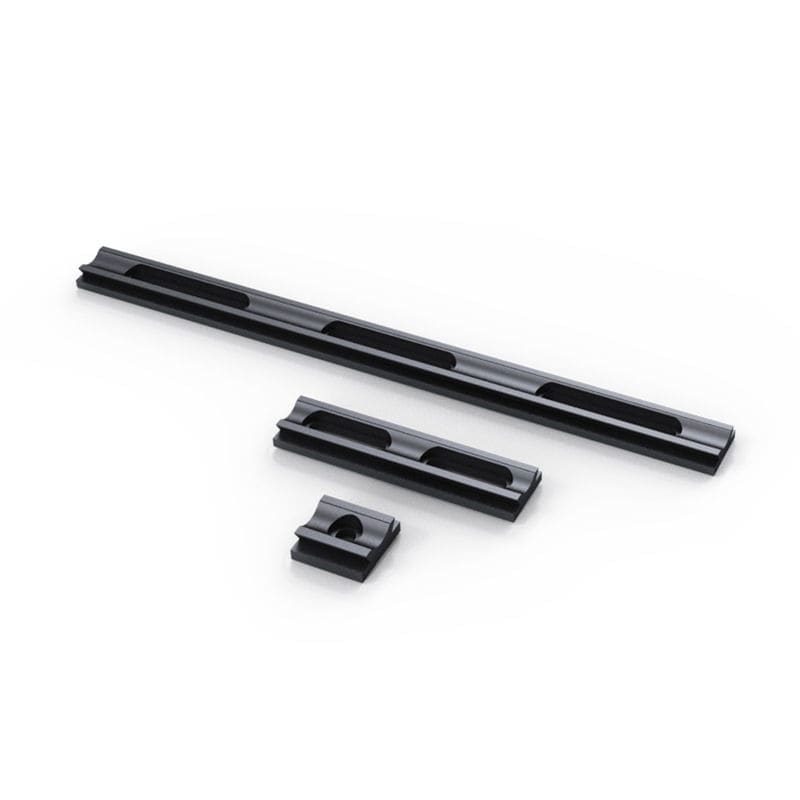

The system rails S 25 LL are basic elements of the beam handling system SYS 25. They are available in standard lengths of 25 mm to 700 mm. The rails are made of deformation-resistant aluminium, precisely manufactured and reflection poor, black anodized.
The system rails, the slides and setup components of the SYS 25 system can be combined to stable and compact optical paths with an optical height of 25 mm.
Thanks to the slotted holes, the system rails S 25 LL can be mounted in almost any angle on the optical table. Thus, the variable handling required for optical setups is guaranteed.
system height 25 mm
suitable for metric and inch mounting grids
deformation-resistant aluminium
reflection-poor, black anodized
Options
- other lengths
- other anodized colours
- non-magnetic or vacuum-prepared versions available
