air compressor / stationary / electrically-powered / screw

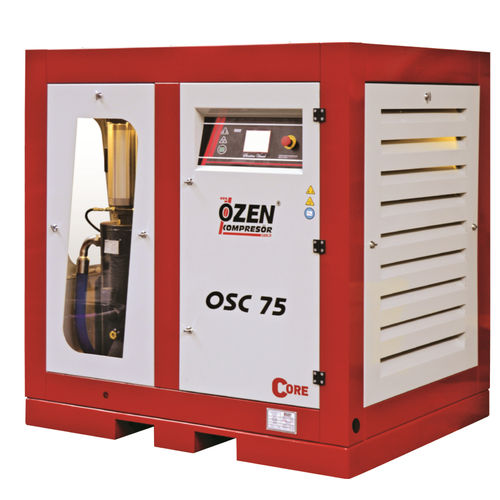

Core series Ozen Kompresor

{{requestButtons}}

Characteristics

  • Type:

    air

  • Portability:

    stationary

  • Power source:

    electrically-powered

  • Technology:

    screw

  • Lubrication:

    lubricated

  • Other characteristics:

    with tank, low-noise, compact, high-performance

  • Applications:

    industrial

  • Pressure:

    7.5 bar, 10 bar, 13 bar (108.78 psi)

  • Flow:

    Min.: 0.04 m³/min (1.41 ft³/min)

    Max.: 26,700 m³/min (942,901.6 ft³/min)

  • Power:

    Min.: 2.2 kW (2.99 hp)

    Max.: 160 kW (217.54 hp)

Description

The Core series which produced by Özen compressors are used long lasting, high performance screw blocks and components which produce by compressor technology leading companies. The perfect lubrication system which is unique design of Özen compressors, ensures screw blocks excellent lubrication for long lasting and efficient working.

Inside of canopy designed to provide ease of maintenance, and easy intervention.The coupled designed screw block with CE certified air tank beside of working perfect lubrication system also carry off vibration to vibration pads which occur during operation. The ergonomic canopy reduce noise level of the machine and is provide constant operating temperature.The ergonomic compact canopy add value to machine.

The Core series motor and air end drive provide by selected belt and pulley mechanism with required transmission rate.

The poly VL belt system is preferred for minimal loss at belt and pulley transmission. By this way, different opening pressures is possible to have only by change of pulley. Use of pulley with bush provide so easy assembly and disassembly for pulleys.

Automatic belt tensioning system ensure high transmission efficiency and safety at drive system.

As standard, high efficient IE2 class IP 54/55 protection class electric motors are used and motor winding shave PTC heat protection sensor.

Ozen compressors use special designed horizontal separator tanks up to 55 kw power range occupy less space because of coupled structure thus relatively obtain large internal volume for convenient maintenance and service facilities. In addition, the risk of oil leakage, with short connection and pressure loss is prevented.
