Housing for multi-cartridge filter
max. 227 l/min | FTB series
PALL
* Enhanced cleanability and microbiological safety due to crevice-free, polished and hygienic design
* Corrosion resistance and durability with 316L stainless steel wetted parts and high-quality welds
* Cost-effective without sacrificing quality and performance

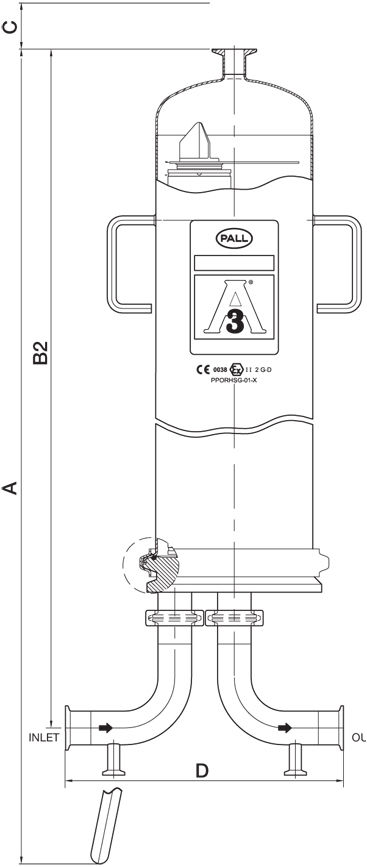

FBT Housings are available in a standard sanitary design allowing a variety of connection options, or in a 3-A sanitary design, which meets the requirements of 3-A Sanitary Standards #10-04.
Features and Benefits
* T-style multi-round housing * Suitable for flow rates up to 227 liters/min (60 USgpm) depending upon cartridge type and size
* Suitable for CIP and SIP
* Beveled housing tubesheet and aseptic-style housing seal provides enhanced drainability and a crevice-free connection between the housing head and bowl
* Electropolished head and elbows and mirror polished bowl ensures optimal cleanability in critical areas while maintaining cost-effectiveness
* New cartridge locking design features additional cut-outs to traditional half-moon portions of the Code 7 bayonet locks, enhancing cleanability and drainability
-
