Compact EMC test chamber
max. 3 m Panashield

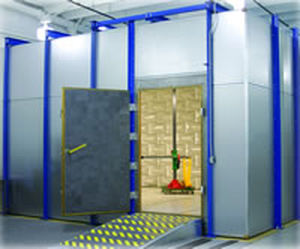

Panashield Compact Anechoic Chambers are available in various sizes for 3 meter electromagnetic compatibility testing. The range starts with a small chamber for both pre- compliant /pre scan radiated immunity (RI) testing and radiated emissions (RE) testing and sizes increase to larger chambers for full compliant radiated immunity testing and pre compliant radiated emissions testing. The CAC is economical in both cost and the floor space it requires.

The chambers are constructed using the Panabolt modular panel RF shielding system. Absorber lining may be a combination of either pyramidal and ferrite absorber, ferrite absorber only or ferrite and hybrid absorber to extend the frequency range to at least 18 GHz.

Typical models are detailed below but different chamber sizes can be accommodated to suit the client's test object size, available floor area and floor to ceiling height.
