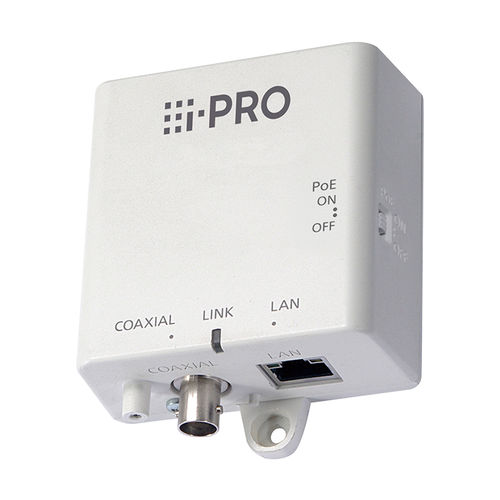

communication adapter / for coaxial cables / coaxial / Ethernet
WJ-Px20x Panasonic Business Security Solutions

{{requestButtons}}

Characteristics

  • Type:

    communication

  • Applications:

    for coaxial cables

  • Connector type:

    coaxial

  • Other characteristics:

    Ethernet

Description

Two models (4-channel and 1-channel) are provided on the receiver side
Up to 4 network cameras can be connected and used on a single receiver side unit.(WJ-PR204)
Power over Ethernet Plus (PoE+) ready
he coaxial - LAN converter is compliant with PoE+ standards (IEEE802.3at) and PoE+ cameras can be connected and used*1.
Use over long distances(WJ-PR201)

The coaxial - LAN converter can be used for distances of up to 300 m (984 feet) for PoE+ connections and 500 m (1,640 feet) for PoE connections, and 2.0 km (6,560 feet) for non-PoE+ connections. (When used with RG-6/U coaxial cable, and the loop resistance is below 4 Ω/100 m {328 feet} without additional joint parts.)

High-speed transmission
The coaxial - LAN converter is capable of transmission speeds of 35 Mbps or over for TCP*2, and 45 Mbps or over for UDP connections*2.
(When used with RG-6/U coaxial cable, and for distances under 2.0 km (6,560 feet) [PR201], 500 m (1,640 feet) [PR204]
No setup required
Connections can be established by simply connecting the coaxial cable to the coaxial - LAN converter.
