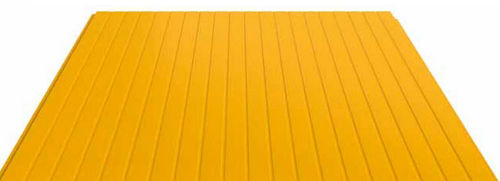

Polyurethane core sandwich panel AIS Pro
aluminum facingsteel facing

polyurethane core sandwich panel
polyurethane core sandwich panel
polyurethane core sandwich panel
polyurethane core sandwich panel
Add to favorites
Compare this product


Characteristics

Core
polyurethane core
Facing
aluminum facing, steel facing
Thickness

Min.: 35 mm
(1.378 in)

Max.: 100 mm
(3.937 in)

Description

• Maximum length - 14.500 mm • Useful width - 1000 mm • Thickness - 35, 40, 50, 60, 80, 100 mm • Thickness of the sheets - from 0.32 to 0.60 mm • Insulating material - PUR /PIR, density 36-40kg/m3 +- 10% • Fire classification - PUR/PIR PUR F UNE 13501-1, PUR/PIR B-s2, d0 The AIS PRO Façade Panel is a sandwich panel with invisible screw fittings, consisting of two galvanized steel plates, a customisable finish and choice of colours and profiles on the outside, and the interior with or without micro ribbing, bonded together in a continuous manufacturing process to a hard core of polyurethane (PUR) or polyisocyanurate (PIR) foam at a density of 36-40 kg/m3. The panel is designed for vertical façades on any metal support. An ingenious lateral hemming system forms the invisible joint between two panels, enables fast union that is watertight and aesthetically pleasing. The invisible joint enables continuous façades to be constructed so that the screws are not seen, but still provide internal fastening and mechanical resistance to the unit. We have all the auxiliary fasteners, screws and trims required for the AIS PRO panel, either standard or custom-made. As with all our panels, the AIS PRO is customisable by selecting the type of cladding, colour and profile of the outer and inner sheets. Please see the technical data sheet for further information.
