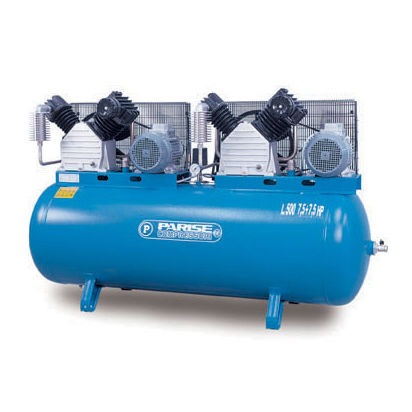

Piston compressor P 500TH ST 230, P 500TS ST 230
airelectrically-poweredstationary

piston compressor
piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
with tank
Pressure

10 bar
(145.04 psi)

Flow

Max.: 1,900 l/min
(501.93 us gal/min)

Min.: 1,340 l/min
(353.99 us gal/min)

Power

Max.: 15 kW
(20.39 hp)

Min.: 8 kW
(10.88 hp)

Description

Tandem compressor units on the tank are designed to enhance the continuous supply of the compressed air with reduced need of electric energy. Every machine is quipped with dual compressor units and power-driven motors. The compressors are durable and robust to provide high performance. The cylinders and heads are designed with cast iron and the steel valves are available to control the performance. The compressors perform is reflex and responding. A metal box is used to assemble the whole apparatus and to protect the switches, star delta, solenoid valves and pressure switches. The apparatus provide guarantee for the perfect performance of the machine.
