Heatless compressed air dryers for applications requiring volume flows up to 940m³/h and dew points of -25°C to -70°C.
Product Overview

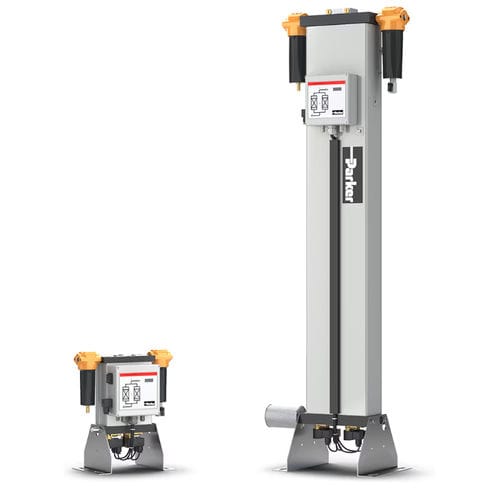

The Parker Zander K-MT 10-95 range of heatless adsorption dryers are designed to dry industrial compressed air reliably and efficiently down to a pressure dew point of -70°C. The units are compact and are designed to be installed free-standing. They come equipped with integrated high performance pre- and post filtration and are capable of volume flows up to 940 m³/h @ 7 barg (100 psig).
Features
• Pressure dew points down to -70°C
• Volume flows up to 940 m³/h @ 7 barg (100 psig)
• High performance pre- and post filters installed as standard
• Energy saving dew point dependent switching (DDS) as an option
Benefits
• Highest quality air
• Energy efficient
• Very flexible due to a wide range of options and accessories
Energy Savings
Where an application calls for a unit able to cope with variations in operating pressure and load, the installation of a dew point sensor at the outlet of the dryer is available as an option. In such an operating mode, the changeover cycle between chambers only takes place when required, and is dependent on the required dew point being achieved. Only upon reaching this adjustable set dew point, does changeover to the regenerated chamber occur. This feature enables the drying phase to be lengthened and thus avoids the unnecessary use of purge air for regeneration and consequently provides energy savings.
