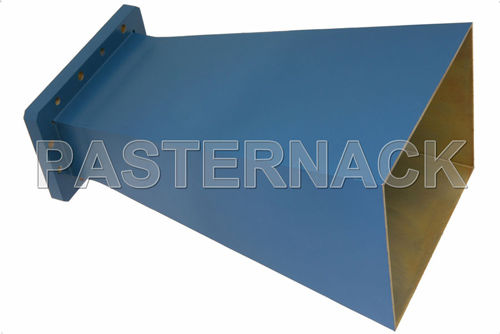

Horn antenna WR-284
waveguide

horn antenna
horn antenna
horn antenna
horn antenna
Add to favorites
Compare this product


Characteristics

Type
horn
Other characteristics
waveguide
Frequency

Max.: 4 GHz

Min.: 2.6 GHz

Gain

Max.: 20 dB

Min.: 10 dB

Description

Pasternack WR-284 waveguide horns are low loss RF components capable of handling high power with high isolation. Our WR-284 waveguide horns components from Pasternack are commonly used for RF and microwave waveguide applications requiring low loss and not possible with most coaxial cables. WR-284 waveguide horns can be used in system designs for their high power handling capabilities, antenna feed networks for low loss and phase accuracy and also in test labs. Pasternack is a major supplier of WR-284 waveguide horns and has one of the largest selections of in-stock waveguide components in the RF/microwave industry. These Pasternack WR-284 waveguide horns for RF / microwave applications will ship same day from our facility in Irvine, CA. The term 'WR' stands for 'Waveguide Rectangular' and the number indicates the waveguide dimensions inner width in hundredths of an inch. WR284 waveguide horns are available in a rectangular waveguide design and are manufactured with a square cover waveguide flange type that is in-stock. The waveguide component and square cover flange are made of quality aluminum for precision, and light weight, but sturdy construction. WR-284 waveguide horns from Pasternack are available in frequency ranges between 2.6 GHz and 3.95 GHz. These WR-284 waveguide horns include waveguide components that are located in the navigation on this page. Details of waveguide component specifications can be found on the WR-284 waveguide horns PDF datasheet download of the specific product page of interest.
