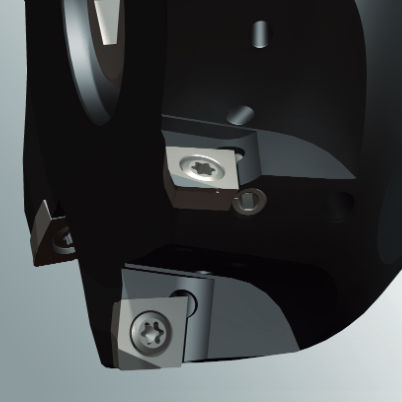

shell-end milling cutter / insert / face / CVD
DTM series Paul Horn

{{requestButtons}}

Characteristics

  • Geometry:

    shell-end

  • Construction:

    insert

  • Type:

    face

  • Material:

    CVD

  • Other characteristics:

    high-precision, with internal coolant, high feed rate, 2-flute

  • Diameter :

    Min.: 40 mm

    Max.: 125 mm

  • Length:

    Min.: 40 mm

    Max.: 63 mm

Description

In conjunction with the DTS inserts the DTM milling system meets high demands of surface quality together with high feed rates.

Perfect axial run out with μ-precise adjustment for optimum surfaces
Triple tooth feed by asymmetric tooth pitch
Cutting speeds of up to 4500 m/min with internal coolant supply
