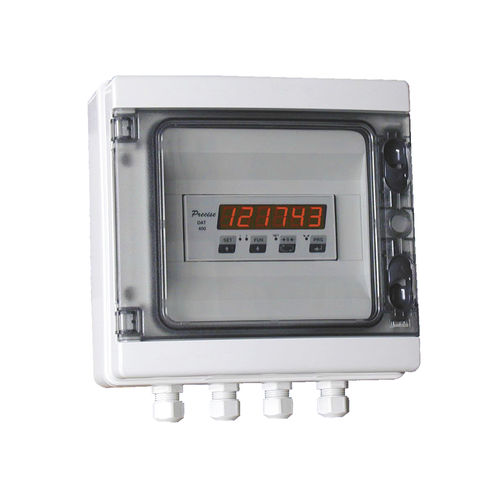

Modbus RTU weight transmitter DAT 400 PBS

The DAT 400 PBS weight transmitter is an innovative and exclusive product by Pavone Sistemi that can be customized. It owns the upload and download function for programming with TESTER 1008, 32 addressable units connectable to PC or PLC, linearization on 10 points and configuration and calibration from the front panel or PC via the USB serial port. It has a peak hold function for dynamic measures and screw terminal blocks. Technical Specifications Measuring range: -0.5÷+3..5 mV/V (-3.9÷+3.9 mV/V optional) Input sensitivity: 0.02 µV/count Full scale non-Linearity: <0.001% Gain drift: 16.000.000 points Trasducer input voltage: 5 V (max 6 load cells 350 Ohm) Visible resolution (in divisions): 60000 Decimal figures range: 0 ÷ 3 Temperature range: -10 ÷ +50°C (max umidity 85% without condensation) Storage temperature: -20 ÷ +70°C Filter: 0.1 ÷ 25 Hz Logic output: 2 Solid-state relays, (maximum load 24 Vdc / 100 mA each) Logic input: 2 optoisolated 24 V c.c. PNP (External voltage) Serial port: USB, RS232C or RS422/RS485 with ASCII or Modbus RTU protocols Power supply: 18 ÷ 28 Vcc - power 5 W Regulatory compliance: EN50081-1, EN50082-2 for EMC; EN61010-1 for Electrical security Fieldbus: Profibus, Devicenet, Ethernet, Profinet, CANopen, Modbus-Plus, Precise Gateway 3000 Dimensions and weight: 215x210x105 (PBS) (LxHxD) Baud rate: 2400, 9600, 19200, 38400, 115200 adjustable Transmission distance: 15m (RS232C), 1000m (RS422; RS485)
