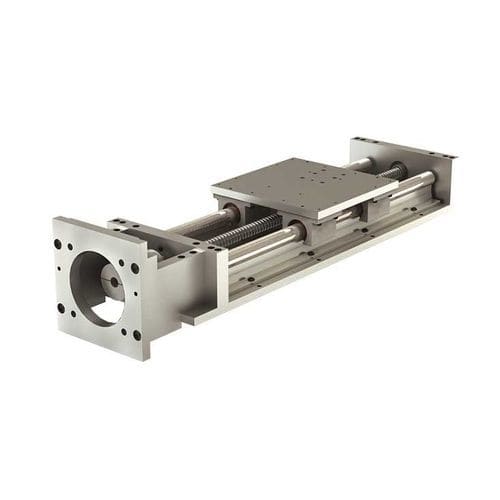

Slide linear guide 2N42-56

ball screwwidestainless steel

Simplicity® Linear Slide Technology handles heavy loads and excels in harsh, contaminated environments. 2N42-56 Plain Bearing Linear Slide Assemblies are rail mounted & plate supported, ball screw driven (supported on both ends), and contain a drive kit for NEMA 42 or NEMA 56 Motors. They are equipped with Frelon® bearings that are self-lubricating (no external lubricants), handle a wide temperature range −240°C to 240°C (−400°F to 400°F, and tolerate and dampen vibration. Specifications include: Rail shaft diameters from 12.7mm (0.5 in) to 50.8 mm (2.0 in) Bearing materials available include FrelonGOLD®, Frelon J, and ball bearing Shaft materials available include alloy steel, anodized aluminum, 440 stainless steel, and chrome plated 303 stainless steel (2) Aluminum alloy mounting plates (4) Simplicity pillow block assemblies (2) Alloy steel shafting (2) Aluminum alloy support rails (1) Rolled ball screw and ball nut assembly (2) Aluminum alloy end plates (1) Aluminum alloy motor mount (1) Couplings NEMA motor drive kit available in 23 and 34. (See catalog for technical specifications)
