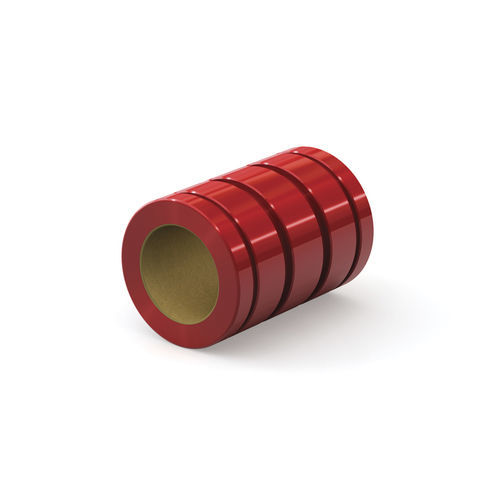

Red anodized aluminum shell identifies the inch series, which is available in off-the-shelf industry standard sizes and interchangeable with linear ball bearings and some bronze bushings. Closed type of linear plain bearing is ideal for handling loads in all directions, and offers a number of mounting options.
Static Load Capacities up to 100,000 lb (444 kN)
Standard Shell Material is Aluminum. Stainless Steel bearing shells available
FrelonGOLD® is the standard bearing liner. Frelon® J & Frelon® W are optional
Self Lubricating for oil free operation
Seal options in nitrile rubber, urethane, and viton from ½” ID and up
O-ring and retaining ring grooves provide multiple mounting options
External lubrication feature is an added option
Wide Temperature Range: -400° F/ 400° F (-240° C/ 204° C)
Vibration Damping
Smooth & Quiet Operation
Custom modifications available – contact an Application Engineer for details
