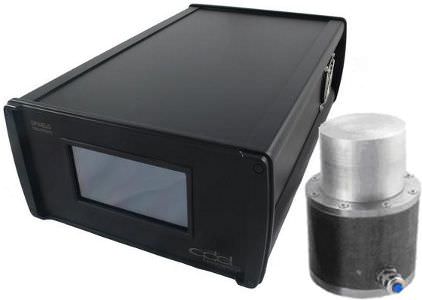

Ultrasonic welding generator OPWELD-PPS

single-phase

Ultrasonic power generator OPWELD-PPS together with appropriate ultrasound probe create the ideal tool for ultrasonic support of compression and homogenization during production process, e.g. by candle production.; Digital, precise control of the generated frequency, finding and control the resonance, continuously variable power control from 0 to 100% allow to choose the welding process parameters to the welding be done with high efficiency. Standard work frequencies: 20, 25, 30, 40 to 80kHz. User-friendly interface and a 5-inch touch screen display simplify the work with the generator. Digital, precise control of the generated frequency, finding and control the resonance, continuously variable power control from 0 to 100% allow to choose the welding process parameters to the welding be done with high efficiency. User-friendly interface and a 5-inch touch screen display simplify the work with the generator. Features - system safe power up sequence; - transformer output; - Plug and Play configuration probe ID; - Ultrasonic overload protection; - matrix touchscreen LCD 5" with intuitive menu structure for quick easy programming; - output voltage regulated in range from 1% to 100% with step 1%; - four Temperature Sensors PT100; - dimensions: 233x121x350mm; - serial configuration port: RS232; - opportunity to work with specialized software package *), running on the Windows 95/98/ME/2000/XP/VISTA/7.0 environment; - weight: 8,2 kg; - power supply: 230 VAC /50Hz. Technical Data Frequency range: 10kHz do 80kHz*) Resolution of frequency setting: 1Hz Max. Output power: 1000W*) Max. Output Voltage: 500Vsk Shape of output voltage: SIN (h max. < 10% ) Max. load current: 6 Ask
