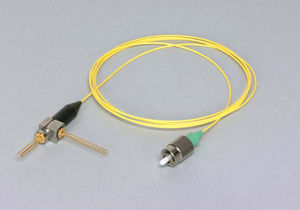

Infrared LED
compactbi-directionalmultimode

infrared LED
infrared LED
Add to favorites
Compare this product


Characteristics

Spectrum
infrared
Configuration
compact
Other characteristics
bi-directional, multimode

Description

PD-LD offers LED-based WDM-style bi-directional transmitter and receiver modules operating in the 850 and 1310nm optical windows. These devices, part number PW85ST, are designed to simultaneously transmit and receive over a single optical fiber at frequencies from DC to 200MHz. Dual wavelength bi-directional modules replace the need for a multimode fiber coupled LEDs, a fiber coupled PIN photodiode, a discreet fiber optic WDM and a second stage optical isolator. The bi-directional modules combine all of these optical functions and relieve the user of having to fusion splice several discreet units together and then squeeze them onto their PCB. Features Output Power of –16dBm typical -40°C to 85o Operating Temperature Range 850 nm LED Source Low Internal Cross Talk Low Noise InGaAs PIN Photodiode Receiver Compact, rugged construction Low Power Consumption ST Board or Panel Mount Receptacle Replaces Discreet Components Class 1 Eye Safe Device%
